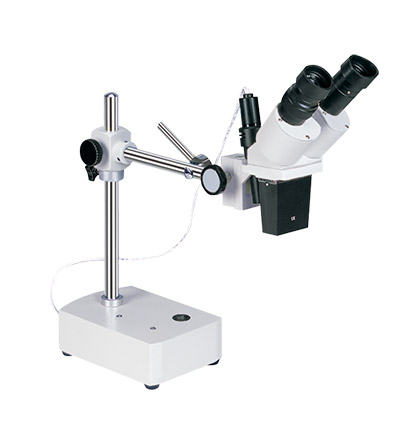

The leading role of the same level microscopes, wide range observation with zoom range 0.6X-5X 、zoom ratio 1:8.3 and visual field up to Φ76mm.
With high quality optical components, providing sharp and striking contrast image and no ghost image.
Ease the tiredness with ergonomic design.
With Complete eyepieces, auxiliary objectives and other accessories, it isan ideal instrument for industry assembling, inspection and teaching field.
|
Viewing Tube |
Trinocular viewing head, Inclined at 30° |
|
Diopter Adjustment Eyepiece |
Extra wide field eyepiece WF10X/Φ23 |
|
WF15X/Φ16 |
|
|
WF20X/Φ12 |
|
|
WF30X/Φ8 |
|
|
Zoom Objective |
0.6X-5X |
|
Zoom Ratio |
1: 8.3 |
|
Working Distance |
115mm |
|
Interpupillary Distance |
55-75mm |
|
Auxiliary objective |
0.5X |
|
0.7X |
|
|
2X |
|
|
Stage Insert |
Glass plate and Opal & black acrylic plate, Diameter 125mm |
|
Glass plateand Opal & black acrylic plate, Diameter 100mm |
|
|
Focusing Range |
105mm |
|
Illumination |
Incident Illumination 100V-240V/LED |
|
Transmitted Illumination 100V-240V/LED |
|
|
Video Adapter |
0.55X C Mount |
|
1X C Mount |
